Nissan Explains What Its Brake Caliper Colors Really Mean

At Nissan, brake caliper colors serve a purpose beyond appearance. Across the automaker's lineup, different colors indicate different levels of braking performance, with silver, red, bright red, gold, and yellow calipers representing increasingly capable systems.

The color-coding is most noticeable on performance models like the Nissan Z and GT-R. Depending on the model, the caliper color can hint at more than just brake rotor size—it may also identify the caliper material, piston count, and even the supplier of the braking components.

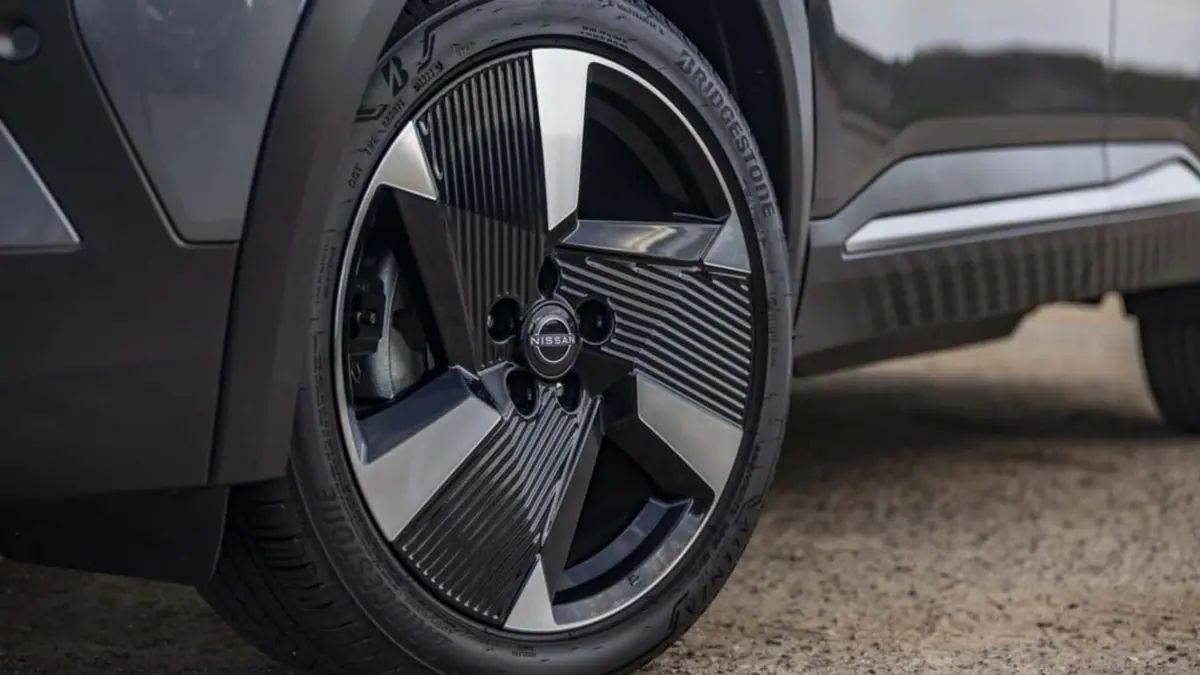

Silver: Standard Street Brakes

Silver calipers are found on most mainstream Nissan models, including the Altima, Kicks, and X-Trail (sold in the U.S. as the Rogue). These systems are designed primarily for everyday driving.

That doesn't mean they're lacking in stopping power. Nissan says the standard brakes provide smooth, confident performance under normal driving conditions. However, they aren't intended to withstand the repeated high-temperature demands of track driving or aggressive performance use.

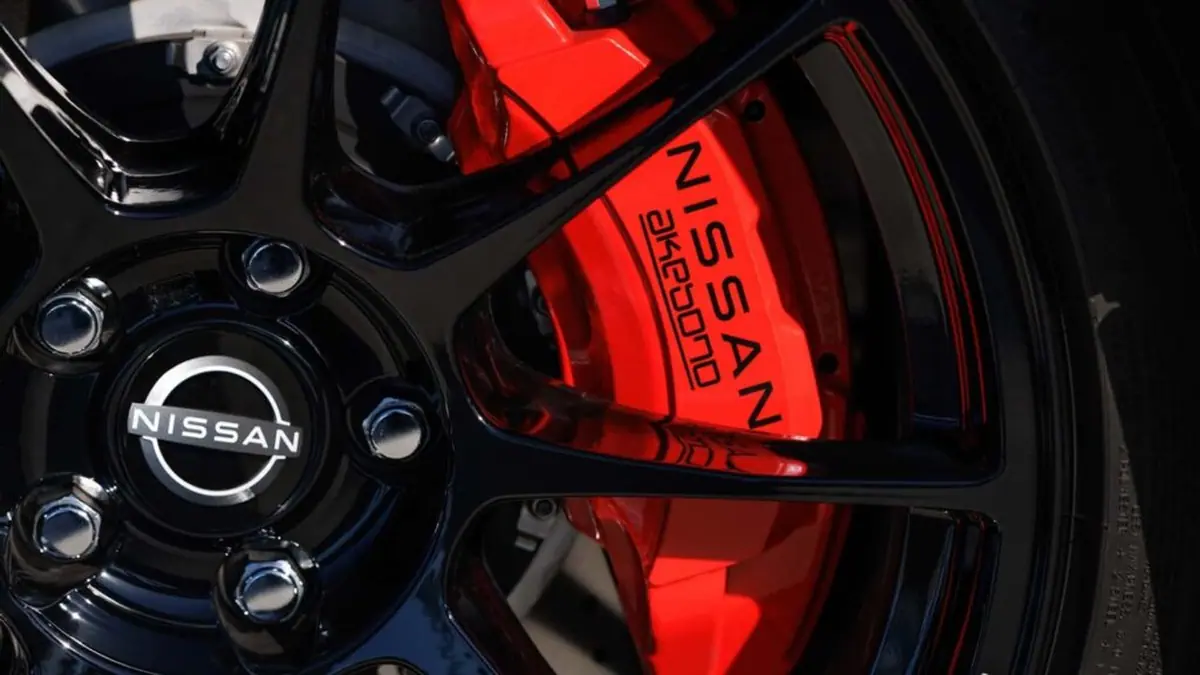

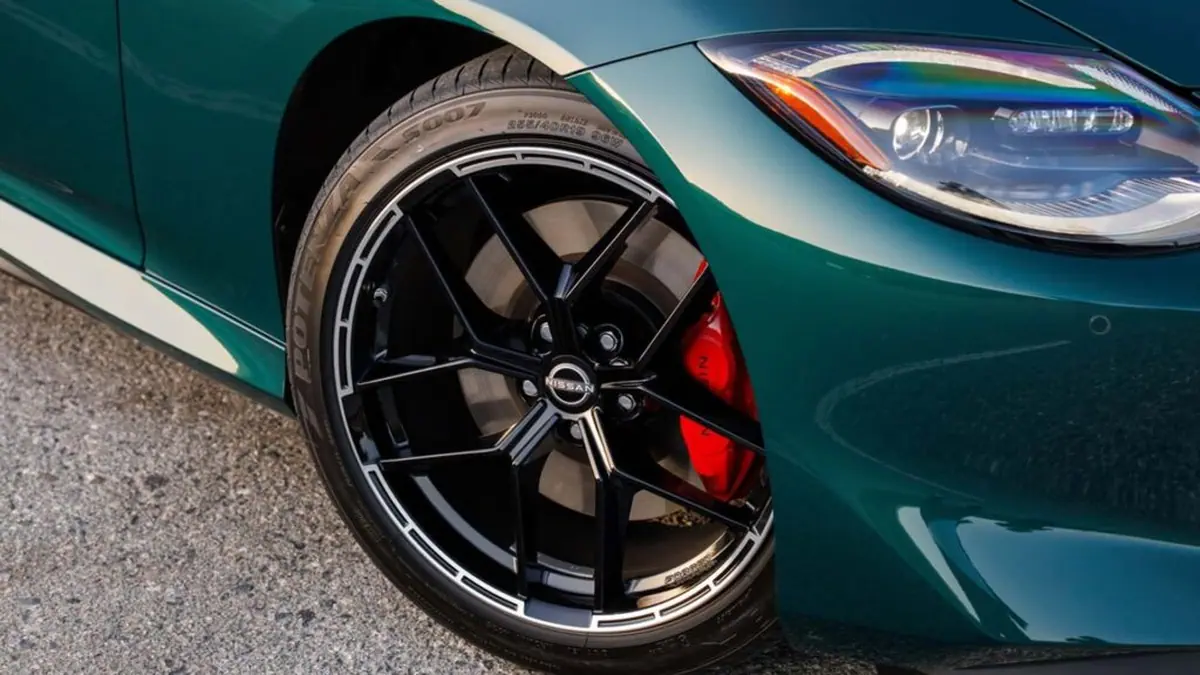

Red: The First Step Up

Red calipers mark the transition to a more performance-oriented braking package. For example, they're fitted to the 2027 Nissan Z Performance.

Compared with the base Z Sport, the Performance model receives aluminum Akebono brake calipers with four pistons up front and two in the rear. The entry-level Z Sport uses cast-iron two-piston front calipers and single-piston rear calipers.

The brake rotors also grow significantly. Front rotors measure 14.0 inches instead of 12.6 inches, while the rear rotors increase from 12.1 inches to 13.8 inches. The red calipers are easily visible behind the Z Performance's 19-inch forged Rays wheels, making it easy to distinguish from the base model.

Bright Red: Nissan Z Nismo

The Nissan Z Nismo takes things another step further with a brighter shade of red reserved exclusively for the flagship version.

The color isn't just cosmetic. Up front, the Z Nismo features 15.0-inch two-piece brake rotors derived from the Nissan GT-R braking system, while the rear retains 13.8-inch rotors.

According to Nissan, these calipers receive a special high-temperature paint and protective coating designed to maintain their appearance under the extreme heat generated during repeated hard braking. The brighter finish debuted on the 2027 Z Nismo and visually separates it from the Z Performance.

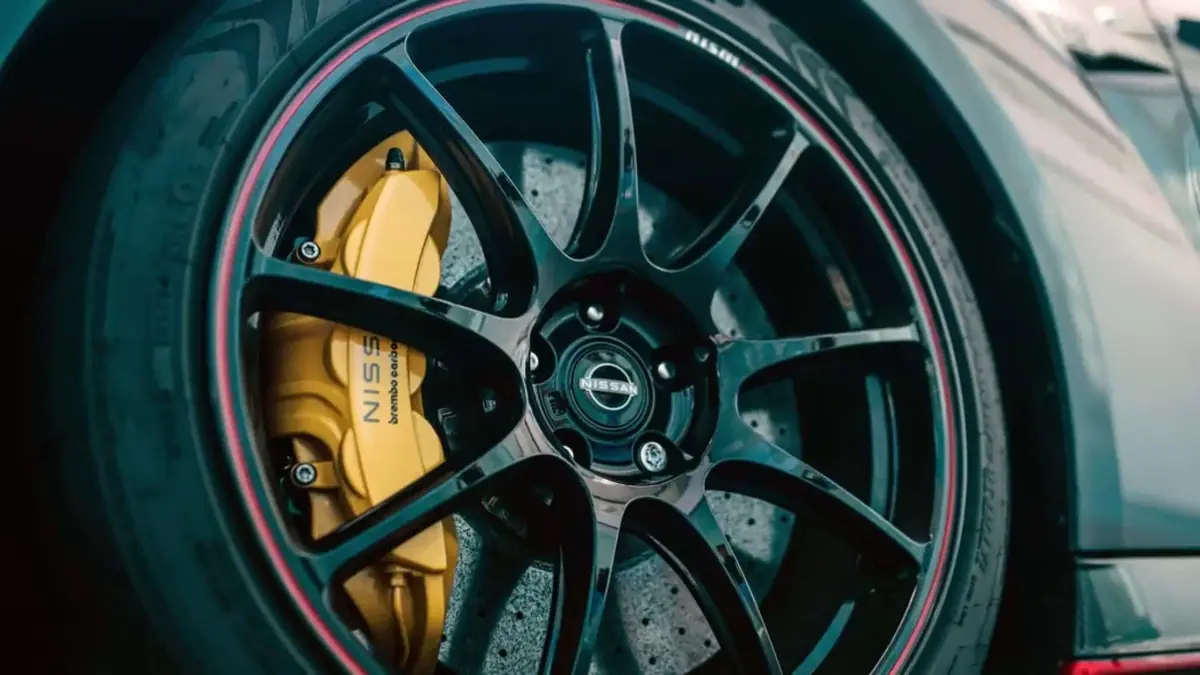

Gold: Brembo Performance Brakes

Gold calipers have become one of Nissan's most recognizable performance trademarks thanks to their long association with Brembo.

The first production Nissan to wear gold Brembo calipers was the 1999 Skyline GT-R (R34). Earlier GT-R models could also be equipped with Brembo brakes, but their calipers were painted black.

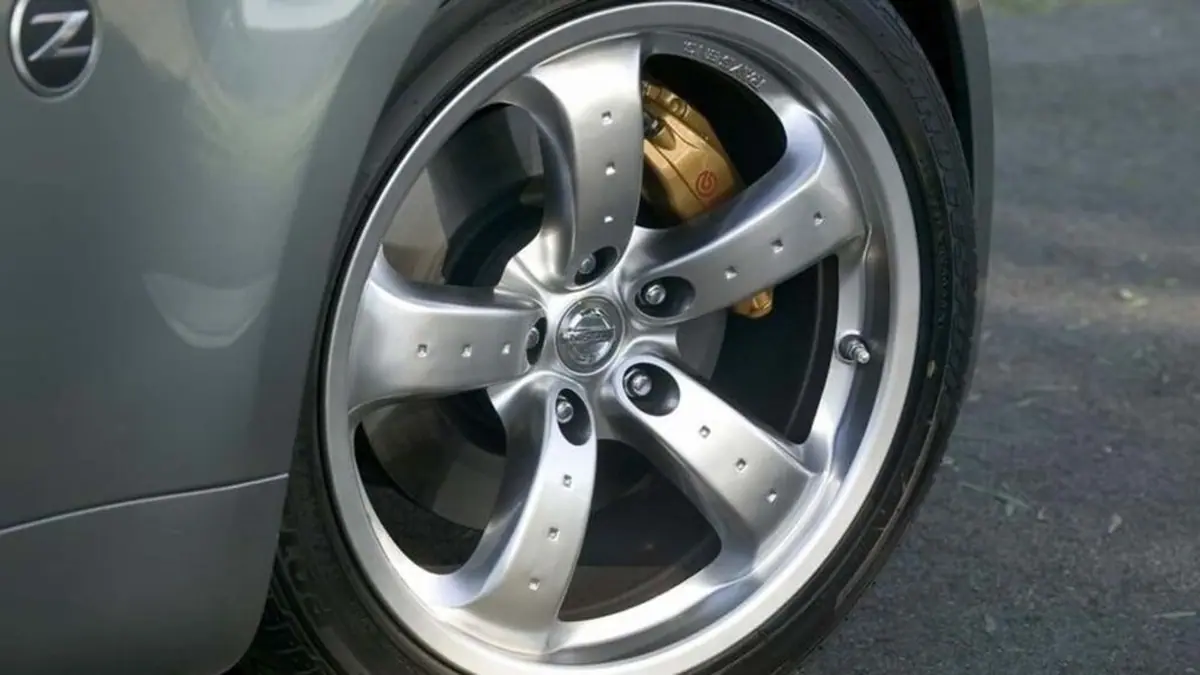

American buyers first saw gold Brembo calipers on the 2003 Nissan 350Z Track Edition. The tradition continued with the R35 GT-R, which featured six-piston front and four-piston rear Brembo calipers.

As a result, gold calipers have become closely associated with Nissan's highest-performance models from the late 1990s and 2000s.

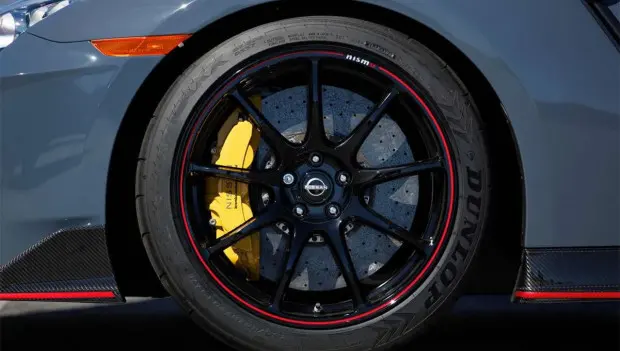

Yellow: Carbon-Ceramic Brakes

Yellow calipers sit at the top of Nissan's factory brake hierarchy.

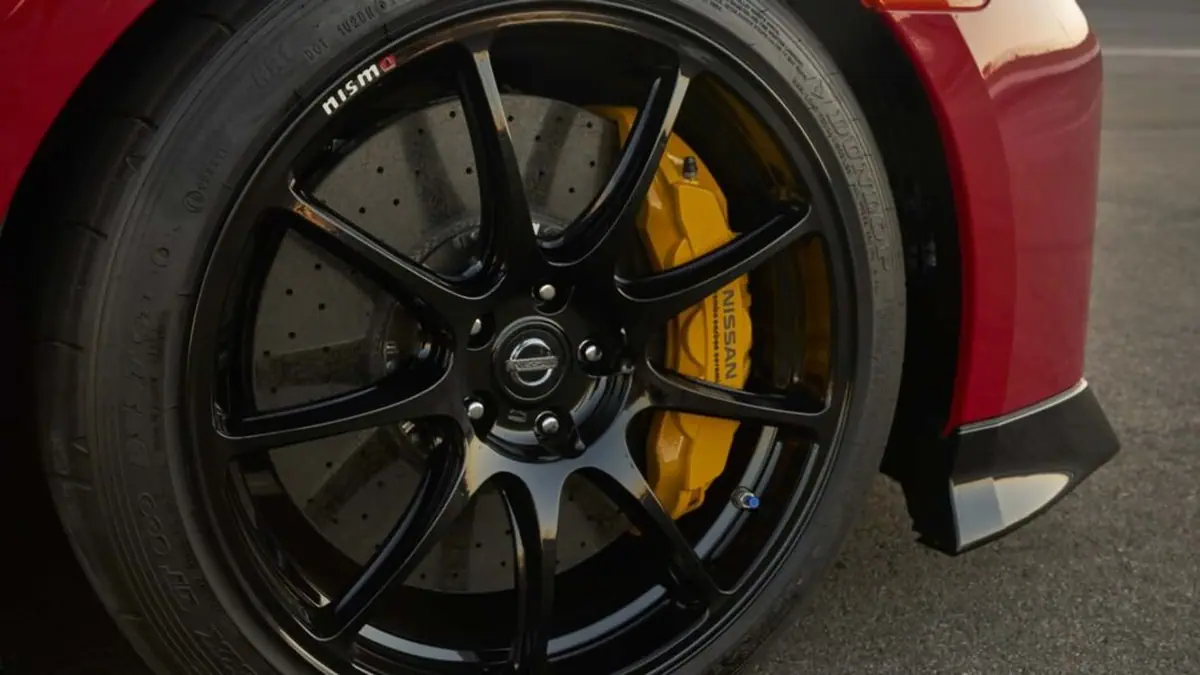

The company reserved them for a handful of its most track-focused models, including the 2020 GT-R Nismo and 2020 GT-R Track Edition, both equipped with carbon-ceramic brake rotors.

Carbon-ceramic brakes offer superior resistance to heat buildup and brake fade during repeated high-speed stops on a racetrack.

Nissan also says the yellow coating is engineered to withstand temperatures exceeding 1,830 degrees Fahrenheit, allowing the calipers to retain their color under extreme conditions.

There Are Exceptions

Like any rule, Nissan's color system isn't absolute.

The limited-production GT-R50 by Italdesign used red Brembo calipers even though Brembo-equipped Nissan models traditionally wore gold. Another exception was the 2023 Nissan Z Proto Spec, which featured yellow Akebono calipers despite using conventional steel brake rotors instead of carbon-ceramic discs.

It's also worth remembering that caliper color alone isn't a reliable indicator on a used vehicle. Previous owners may have repainted the calipers or swapped the braking system altogether. Verifying the vehicle's specifications and VIN remains the best way to confirm exactly what equipment a car left the factory with.

For factory-original Nissan models, however, the color scheme offers a useful shortcut. Silver identifies standard braking systems, red and bright red signal increasingly performance-focused setups, gold traditionally denotes Brembo hardware, and yellow is reserved for the brand's most advanced carbon-ceramic brakes.
